A Stuck Trigger on a Handheld Fogger - This Convenience Store Sprayed Solution Over Two Shelves Before the Plug Came Out
Last updated: 4 Sep 2026 | 14 Views |
Real case - Convenience store
A Stuck Trigger on a Handheld Fogger - This Convenience Store Sprayed Solution Over Two Shelves Before the Plug Came Out
A stuck trigger: when the machine refuses the command to stop.
A fogging machine that cannot be stopped when you release the trigger is a problem most people never think about, until it happens in a store full of stock with customers at the door.
This convenience store trades twenty-four hours and does its cleaning and insect control between two and four in the morning, the quietest period but still with people coming and going.
The machine is a small handheld ULV unit, light, controlled by a finger trigger designed to stop the instant it is released, so that volume can be controlled precisely in tight spaces.
That night the staff member sprayed as usual at the dry goods shelving, then released the trigger to move on. The machine did not stop. Solution kept coming as he turned toward the next aisle.
Five seconds out of control
He panicked and squeezed the trigger again hoping it would spring back, an understandable reflex that did not work, and during that time the machine kept spraying onto the stocked shelving.
About five seconds later he pulled the plug, which was the right decision, but in those five seconds solution had been sprayed across two full rows of stock.
The consequence was that all stock in that section had to be removed, because food products in direct contact with a chemical cannot be sold, however thoroughly they are wiped down.
The store also had to close that section for floor and shelf cleaning, and record the incident in the company's quality system, which was a far larger burden than the repair itself.
Why triggers stick
A handheld fogger trigger has two parts that must work together: the mechanism that returns the trigger, and the electrical contact that opens the circuit when it returns. If either fails, the machine does not stop.
The most common cause is dried solution inside the mechanism, making the trigger stem stiff so it does not return fully. This happens in machines that are never cleaned and use products with a high binder content.
The second cause is a fatigued or broken return spring, a small metal component that works every time the trigger is pulled and has a life measured in cycles.
The third is electrical contacts welded together by accumulated arcing until the metal fuses. This is the most dangerous case, because even if the trigger returns normally the circuit still does not open.
What we found when we opened the handle
With the handle apart we found a thick layer of dried solution in the channel where the trigger stem travels, which explains the stiffness immediately. It had accumulated from aerosol drifting back into the gaps of the handle.
The return spring was intact but tested weaker than a new one, and combined with the stiffness from deposits it no longer had the force to push the trigger fully back.
On the switch contacts we found burn marks and pitting from arcing, a condition that makes future welding of the contacts likely, even though it had not reached that point on the night of the incident.
The wiring inside the handle had insulation beginning to harden from aerosol contact, an additional risk that had to be corrected at the same time.
What we replaced and the routine we recommended
We fitted a complete new correct-model trigger switch assembly, including the return spring and contacts, because cleaning pitted contacts does not restore them.
We cleaned the entire handle interior and replaced internal wiring where insulation had hardened, and measured insulation resistance to confirm safety.
We inspected the handle seal that should prevent aerosol drifting into the mechanism and replaced it, because a degraded seal is the true root cause of all the deposits.
Finally we recommended the store adopt a pre-use test every time: squeeze and release the trigger three times with the solution valve closed, to confirm the trigger returns fully and the machine stops instantly.
The damage, part by part
Trigger not returning due to solution deposits
Aerosol drifting into the handle dries into deposits in the channel where the trigger stem travels, making it stiff so it does not return fully.
A fatigued return spring with insufficient force
The spring works every time the trigger is pulled and has a life measured in cycles. As its force falls, combined with stiffness, the trigger stays in the pulled position.
Contacts welded by arcing
Accumulated arcing pits the contacts and can weld them together, the most dangerous case, because the machine will not stop even when the trigger returns normally.
Solution reaching stock and areas it should never touch
Uncontrolled spraying in an area holding food products means all of it has to be discarded, a loss many times larger than the repair cost.
Why the usual fixes do not work
Squeeze the trigger again to free it
Everyone's first reflex, but it does not work on a stiff mechanism or fused contacts, and it wastes several critical seconds.
Spray lubricant into the trigger channel
Some sprays free it temporarily but attract more deposits over time, and some reach the electrical contacts and create a new problem.
Wash the handle with water without dismantling it
Water entering the handle reaches the contacts and wiring, risking current leakage and causing corrosion you cannot see.
Keep using it but be extra careful
The risk is not about operator care. It is that the machine does not respond to the command to stop, which is a safety defect that must be corrected before use.
Replace only the spring
If the contacts are pitted and the seal has degraded, replacing only the spring restores it temporarily and the incident recurs within months.
This is a safety defect, not an inconvenience
A machine that does not stop when told to is a machine the operator cannot control. In an area with stock, food or people, that risk should not be accepted even once.
So we replace the whole switch assembly rather than repairing parts of it, and we address the handle seal, which is what allowed aerosol to drift in and accumulate in the first place.
At the same time we set out a pre-use test that takes under ten seconds, so the operator can be confident every time before spraying begins.
10 reasons customers choose World Health Disinfection
1. Whole switch assembly replaced when contacts are pitted
Pitted contacts can weld in future and cleaning does not restore them, so we replace the complete assembly for safety.
2. The handle seal, the real root cause, is addressed
Aerosol drifting in is the source of all the deposits, so replacing the seal fixes the root of the problem rather than just cleaning up.
3. Internal wiring replaced where insulation has hardened
Hardened insulation from aerosol contact is a current-leakage risk. We replace it and verify insulation resistance every time.
4. Stop function tested dozens of times before return
We squeeze and release the trigger dozens of times to confirm the machine stops instantly every time, not just on two or three tries.
5. Solution valve checked for complete shut-off
Beyond the electrical circuit, we confirm the solution valve closes completely, because dripping after release is also a problem in areas holding stock.
6. Correct-model parts only
Trigger switches have model-specific current ratings and shapes. Fitting something that merely fits is what causes arcing and welding later.
7. A pre-use test procedure for operators
We provide a short procedure taking under ten seconds for staff to run before every session.
8. Service that understands retail
We time collection and return to minimise impact on trading, and understand the requirements around food products.
9. Handover with documentation for quality systems
The store receives the list of parts replaced and the test results, for attachment to the corrective action record in the company's quality system.
10. Nationwide pickup and return
We collect from and return to retail stores, hotels, factories, schools and local authorities across Thailand.
Before and after
Before
- Machine did not stop when the trigger was released
- Trigger stem stiff and not returning fully
- Thick dried solution deposits in the trigger channel
- Return spring weaker than a new one
- Switch contacts burnt and pitted from arcing
- Internal handle wiring with insulation beginning to harden
After
- Machine stops instantly every time the trigger is released
- Complete new correct-model trigger switch assembly fitted
- New handle seal fitted to keep aerosol out of the mechanism
- Internal wiring replaced and insulation resistance verified
- Solution valve shutting off completely with no dripping
- Passed dozens of squeeze and release test cycles
Our three-step process
1. Inspect and test the stop function before quoting
We collect the machine, open the handle to inspect the mechanism and contacts, test the stop function repeatedly, then quote with photographs and findings.
2. Replace the switch assembly and fix the root cause
Trigger switch, spring, contacts, handle seal and internal wiring replaced per the findings, with the whole mechanism cleaned.
3. Retest and handover with a pre-use procedure
Dozens of squeeze and release cycles, valve shut-off checked, then returned with a pre-use test procedure and documentation for the quality system.
It never occurred to us that the machine might not stop. Those five seconds cost us two full shelves of stock. The team replaced the whole switch assembly and explained that the root cause was a seal letting aerosol drift inside. We now run a test before every session.
Khun Nattapon - Store Manager, convenience store
A ten-second test before every session
First, close the solution valve completely, then switch the machine on to test the mechanism with nothing coming out, which makes the test safe even in an area holding stock.
Second, squeeze and release the trigger three times in a row. Watch that it returns fully every time and that the machine stops instantly on release rather than winding down.
Third, hold the trigger for about three seconds before releasing, to test under conditions closer to real use than a quick squeeze.
If the trigger is stiff, returns slowly, or the machine does not stop instantly, stop using it and call a technician. Do not carry on intending to be careful, because the fault is in the machine, not the operator.
Keeping aerosol out of the handle and mechanism
Avoid spraying upward for long periods, because aerosol drifts back along the handle and works into the gaps far more easily than when spraying horizontally.
After every use, wipe the handle and the area around the trigger with a damp cloth then dry it. Never let aerosol deposits dry in place.
Do not set the machine down with the handle face-down on a wet surface, because liquid wicks into the switch openings and reaches the electrical contacts directly.
Check the seal around the handle every three months. If the rubber is hard, cracked or has come out of its groove, replace it. A seal costing a few hundred baht prevents a complete switch assembly replacement.
Frequently asked questions
How dangerous is a fogger that will not stop when the trigger is released?
Very. The operator has no control, and in an area with stock, food or people even a few seconds of continuous spraying causes damage that is hard to put right.
Why do triggers stick?
Mainly dried solution deposits in the mechanism, a fatigued return spring, and electrical contacts pitted by arcing that can weld together.
Will spray lubricant fix it?
Not advisable. Some sprays attract more deposits over time and some reach the electrical contacts and create new problems. It should be dismantled and cleaned properly.
Is replacing just the spring enough?
Only if the contacts are still good and the seal is intact. If the contacts are pitted or the seal has degraded, replace the whole assembly to prevent a recurrence.
How long does the repair take?
Replacing the switch assembly with seal and internal wiring typically takes one to three working days, depending on parts availability for the model.
What should I check before every session?
Close the solution valve, then squeeze and release the trigger three times to confirm it returns fully and the machine stops instantly. It takes under ten seconds.
Do you serve retail stores and restaurants?
Yes. We serve retail, food service, hotels, factories, schools and local authorities nationwide, scheduling to minimise impact on trading.
Do you repair thermal fogging machines too?

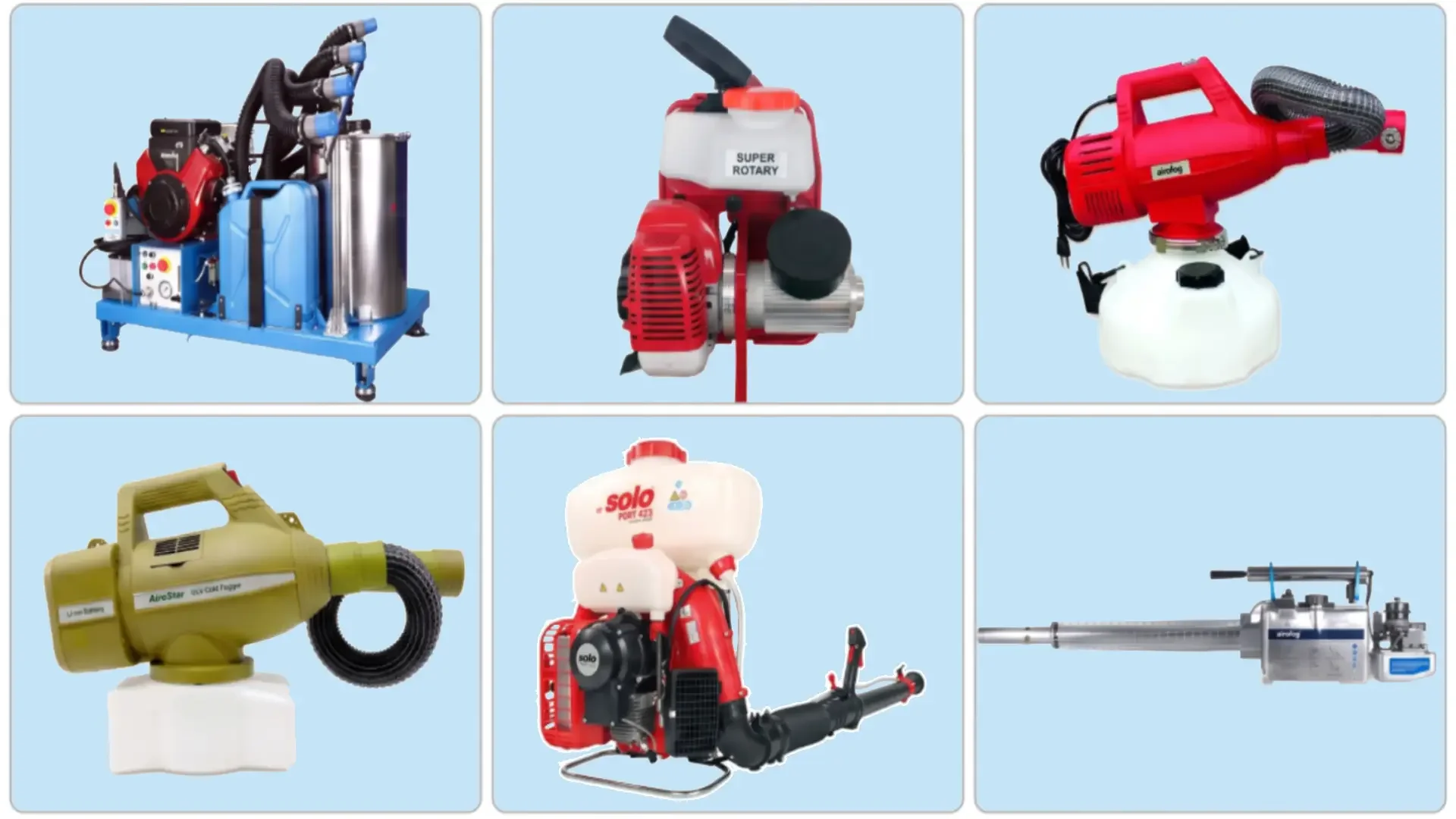

Yes. We repair and maintain thermal foggers, backpack and handheld ULV machines, including electrical and control-board work.
A machine that cannot stop should stop being used
A sticking trigger is treated as a small matter until an incident happens. It is a safety defect: stop using the machine immediately and have it corrected properly before it goes back into service.
World Health Disinfection repairs handheld foggers, ULV machines and thermal fogging equipment, with stop-function testing and documentation for quality systems, nationwide.
Send us your model and the symptom and we will assess it at no charge.
Free assessment by an experienced technician
Handheld fogger, ULV and thermal fogger repair, all types. Nationwide pickup and return.
