Real case - Textile factory, Samut Prakan
A Leaking Backpack Tank Soaked the Operator All Shift - This Textile Factory's Safety Officer Stopped Fogging Immediately
A seeping backpack tank: a risk the operator usually does not know they are taking.
Operators complained their shirts were wet at the back after every session and assumed it was sweat, until the safety officer touched it and realised it was not. This is a story about a slow leak that is far more dangerous than it looks.
This textile factory has a large production area, a raw materials warehouse and staff accommodation on the same site. Insect control is a routine job carried out by the factory's own maintenance team.
The machine in use is a backpack unit with the solution tank sitting against the operator's back, which is convenient for large areas but means that any leak runs directly onto the person carrying it.
It began with operators reporting wet shirts and itching around the waist after shift, which everyone assumed was sweat and heat, until the safety officer checked personally on the following shift.
Symptoms mistaken for sweat
A backpack tank leak is rarely a visible stream. It is a slow seep along a seal or joint, spreading through fabric and looking no different from sweat to someone already working in a hot factory.
The reported symptoms were a wet back and itching at the waist, with a faint red rash on some days that cleared by the next morning, a pattern more consistent with repeated dilute chemical contact than with heat rash.
What kept this hidden for so long was that operators changed immediately after shift and showered at work, so nobody ever saw the dried stain on a shirt and nobody connected it to the machine.
The safety officer was the first to check systematically, by having an operator wear a light-coloured shirt and inspecting it after the shift. The result was a clear stripe running from the tank position down to the waist.
What we found on the pressure test
When the machine arrived we did not start by looking for leaks by eye, because a slow seep rarely shows itself while the machine is standing still. We pressure-tested the system to the manufacturer's figure instead.
That found three leak points. The first was the tank cap gasket, hardened and flattened with no recovery. The second was the solution outlet fitting at the base of the tank. The third was a small crack in the tank body at the harness mounting point.
The crack at the mounting point was the most concerning, because it comes from material fatigue under repeated load and vibration over years, and it is a crack that only ever grows.
The tank cap gasket we removed was visibly thinner than a new one, with a permanent compression ring around the cap edge, the normal condition of rubber that has run for years without replacement.
Why the safety officer was right to stop use immediately
Repeated skin contact with chemicals, even at diluted working strength, is an exposure route that safety regulation takes seriously, because effects accumulate and often produce no acute symptoms.
When the operator does not know they are being exposed, the risk rises further, because there is no immediate washing and no incident report, so the contact duration is far longer than it should be.
Beyond skin contact, solution soaked into clothing evaporates and is inhaled at close range throughout the working period, an additional exposure route that nobody counts.
Stopping use immediately was the correct decision, and sending the machine for inspection while recording the incident in the factory's safety system is what should always accompany it.
What we repaired and what we checked as well
We replaced the tank cap gasket and every seal in the solution system as a complete set, because rubber that has lived through the same conditions for years degrades together. Replacing only the leaking point means waiting for the next one.
For the crack in the tank body, we do not recommend welding or adhesive repair, because that area is permanently under load and fatigued material cracks again beside the original repair. We fitted a new correct-model tank.
We inspected the harness and all mounting points, finding the strap fraying at the edge and one mounting lug twisted, so we replaced the whole harness set, because a strap that fails mid-job endangers both operator and machine.
Finally we pressure-tested again after assembly, and test-fogged with solution while taping absorbent paper to the back plate to confirm no seepage remained.
The damage, part by part
Cap gasket hardened with no recovery
Rubber used for years flattens permanently and no longer springs back, so the cap can no longer seal, producing a slow seep invisible during work.
Solution outlet fitting seeping at the tank base
This point sits where it cannot be seen while the machine is worn, so the seeping solution runs straight onto the operator's clothing unnoticed.
Fatigue cracking at the harness mounting point
Caused by years of accumulated load and vibration. It only grows, and should never be welded or filled, because it cracks again beside the repair.
Operators exposed to chemicals without knowing
A leak that looks like sweat means no immediate washing and no incident report, so contact duration is far longer than it should be, with close-range inhalation of vapour as well.
Why the usual fixes do not work
Tighten the tank cap harder
It works temporarily on a gasket that is still elastic. On a permanently flattened one it tears the rubber and wears the cap thread, sealing worse than before.
Tape or glue the crack
The crack is at a permanently loaded point. Filler comes away or the crack extends alongside within weeks, and the next leak usually happens mid-job.
Give the operator an apron and carry on
That moves the problem rather than fixing it, and does nothing about inhalation exposure from vapour close to the body throughout the shift.
Put less solution in the tank so it does not reach the leak
That means refilling more often and opening the cap more often, increasing direct chemical contact, and it does not address the leak at the tank base at all.
Wait for the annual maintenance interval
A leak that contacts the operator is a safety issue, not a performance issue. It should not wait for a schedule. Stop use and inspect immediately.
This is a safety job, not just a machine job
When a leak reaches the operator, the standard for repair has to be higher than simply making the machine work. So we pressure-test to find every leak point, not just the visible one.
We replace the rubber as a complete set rather than only the leaking point, and we do not repair fatigue cracks with temporary methods, because both approaches simply allow a recurrence.
And we hand over a pressure test report, so the factory's safety department can attach it to their corrective action record.
10 reasons customers choose World Health Disinfection
1. Pressure testing to find every leak point
A slow seep rarely shows while the machine is standing still. We pressure-test to the manufacturer's figure so every point is found, not just the visible one.
2. Gaskets and seals replaced as a complete set
Rubber that has lived through the same conditions for years fails together. Replacing the set is the only way to prevent another leak next month.
3. No temporary repairs on fatigue cracks
Cracks at loaded points always grow. We fit new correct-model components rather than welding or filling, because operator safety outweighs the cost of a part.
4. Harness and mounting points checked every time
A strap that fails mid-job endangers both operator and machine. We inspect and replace when fraying or twisted lugs are found.
5. Absorbent paper test at the back plate
After assembly we test-fog with solution while taping absorbent paper at the back plate position, to confirm no seepage remains in real use.
6. Handover with a test report
The safety department receives the pressure test result and the list of parts replaced, for attachment to the corrective action record.
7. Engine and electrical systems checked too
Leaking solution may have reached wiring or other components, so we inspect the whole machine to rule out hidden damage that becomes the next incident.
8. Manufacturer-specification parts only
Gaskets and seals must be a material compatible with the solution actually in use. Wrong-grade rubber is the most common cause of repeat leaks we see.
9. Practical guidance for operators
We advise on pre-wear checks, PPE use, and the steps to take immediately if a leak is suspected.
10. Nationwide pickup and return
We collect from and return to factories, warehouses, hotels, schools, farms and local authorities across Thailand.
Before and after
Before
- Operators' shirts wet at the back after every session
- Itching and faint red rash at the waist after shift
- Three leak points found on pressure testing
- Tank cap gasket permanently flattened and thinner than new
- Solution outlet fitting at the tank base seeping throughout use
- Fatigue crack in the tank body at the harness mounting point
After
- No seepage at all, confirmed with absorbent paper at the back plate
- Passes pressure testing to the manufacturer's figure
- All gaskets and seals replaced as a set
- New correct-model tank fitted instead of repairing the crack
- New harness and mounting lugs fitted
- Handed over with a test report for the safety department
Our three-step process
1. Pressure test and report before quoting
We collect the machine, pressure-test the system to find every leak point, then send a photographed report with a firm price before starting.
2. Replace all affected parts to specification
Gaskets, seals, tank, harness and mounting lugs replaced according to the findings, with the electrical and engine systems checked alongside.
3. Retest and handover with documentation
Pressure tested again, test-fogged with absorbent paper at the back plate, then returned with the test report and the list of parts replaced.
Our operator had had a wet back for months and thought it was sweat. When we actually checked, it was solution. World Health Disinfection pressure-tested it and showed us all three leak points, and gave us a test report we could attach directly to our safety record.
Khun Siriporn - Safety Officer, textile factory, Samut Prakan
Check a backpack machine for leaks before every wear
Before putting the machine on, stand it on a dry surface with light-coloured paper or cloth underneath, fill the tank with clean water and leave it five minutes, then look for wet marks beneath.
Check the cap gasket by pressing it with a finger. Good rubber is elastic and springs back immediately. If the mark stays or the rubber feels hard like plastic, it is time to replace it.
Inspect around the harness mounting points every time. Small cracks that look unimportant are the start of growing fractures, at a point that carries load throughout the working day.
After use, look at your own clothing when it is dry, not when it is wet, because solution stains are far more visible dry. It is the simplest check an operator can do for themselves.
What to do immediately if you suspect solution is leaking onto you
Stop work immediately and remove the machine. Do not finish the round on the basis that it is nearly done, because contact duration is the single most important factor in chemical exposure.
Remove the wet clothing and wash the affected skin with plenty of clean water for at least fifteen minutes, following the guidance in the safety data sheet for the product in use.
Report to your supervisor and safety officer immediately, and record the incident, noting the product, its concentration and the estimated contact period.
Do not return the machine to service until it has been inspected and pressure tested, and keep contaminated clothing separate for washing rather than mixing it with other laundry.
Frequently asked questions
How dangerous is a seeping solution tank?
More dangerous than it looks, because it means repeated skin contact throughout a shift that the operator usually does not notice, plus close-range inhalation of vapour.
How can I tell a leak from sweat?
Have the operator wear a light-coloured shirt and inspect the stain when dry after shift, or fill the tank with clean water and stand the machine on light paper for five minutes.
Will tightening the cap fix it?
Only if the gasket is still elastic. If it has flattened permanently, tightening tears the rubber and wears the thread, making the seal worse.
Can a crack in the tank be welded or filled?
Not advisable. It is a permanently loaded point, so fatigued material cracks again beside the repair within weeks. Fit a new correct-model tank.
How long does the repair take?
Replacing all gaskets and seals with pressure testing typically takes two to four working days. Replacing a tank may take longer depending on parts availability.
How often should gaskets and seals be replaced?
At the manufacturer's interval, or at least annually for heavily used machines, because rubber degrades with time even when the machine is not in use.
Do you provide a test report for the safety department?
Yes. We supply the pressure test result and the list of parts replaced, for attachment to the factory's corrective action record.
Do you repair ULV machines as well?

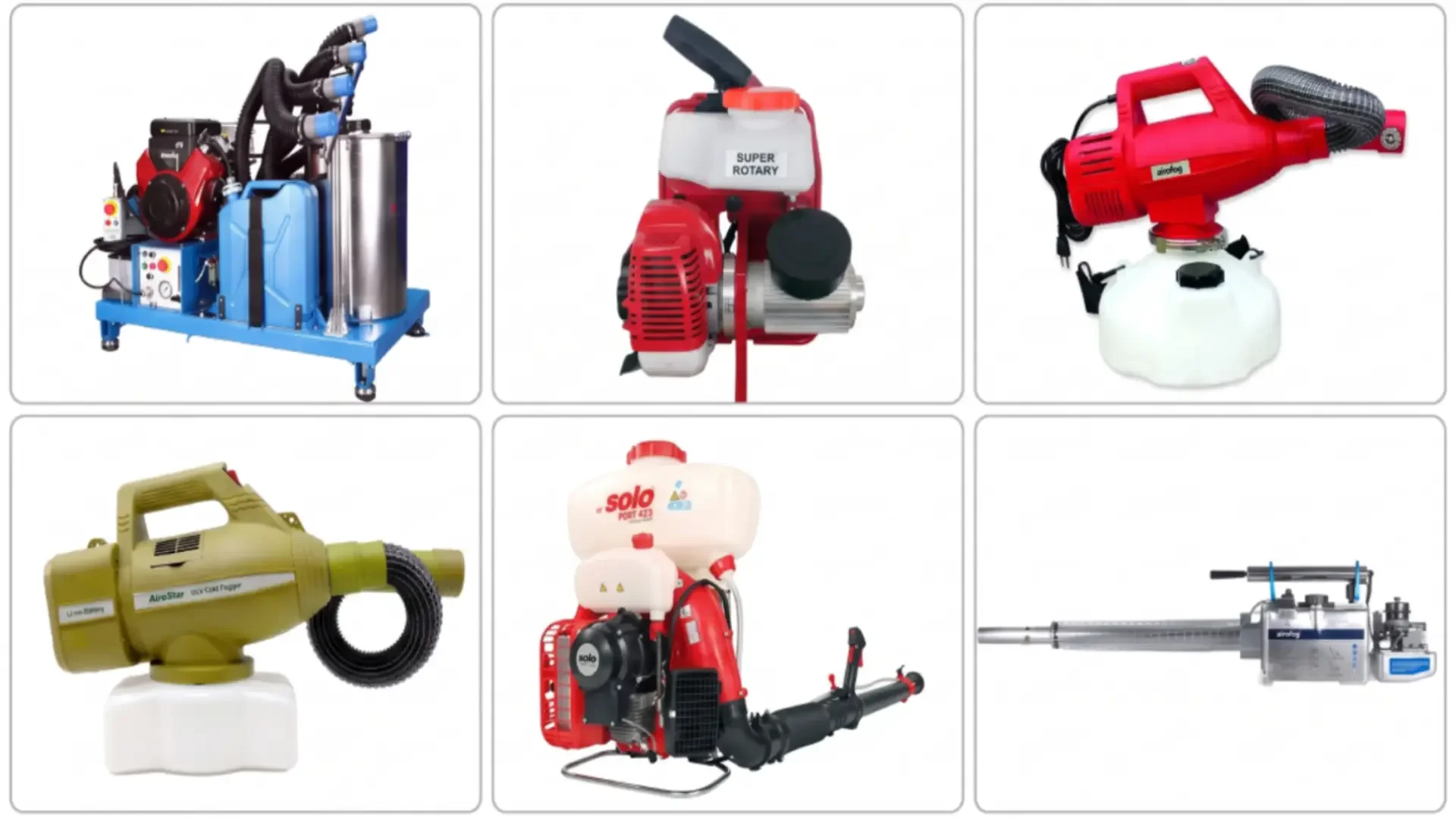

Yes. We repair and maintain thermal foggers, backpack and handheld ULV machines, including electrical and control-board work.
A machine leaking onto its operator stops first, and is repaired second
In chemical application work, operator safety always outweighs the schedule. A seep that looks like a small matter is accumulated exposure nobody is counting, and it is fixed by testing properly.
World Health Disinfection repairs and tests thermal fogging machines and ULV equipment, with test documentation for safety records, for factories, warehouses, hotels, schools and local authorities across Thailand.
Send us your model and the symptom and we will assess it at no charge.
Free assessment by an experienced technician
Fogging machine repair and testing - thermal foggers, ULV machines, backpack and handheld units. Nationwide pickup and return.
