A Worn Clutch and Pulley in an Engine ULV Machine - This Farmer Group Could Only Treat Half a Field Before Power Dropped
Last updated: 4 Sep 2026 | 9 Views |
Real case - Large-plot farmer group, Suphan Buri
A Worn Clutch and Pulley in an Engine ULV Machine - This Farmer Group Could Only Treat Half a Field Before Power Dropped
A worn clutch and pulley in an engine ULV machine: a fault that only appears under real work.
The machine started easily, idled smoothly and sprayed well for the first twenty minutes. By minute forty the air from the nozzle weakened until droplets grew and fell to the ground. This is the classic signature of a worn drive train.
This farmer group pools over a thousand rai of member land and jointly bought two engine-driven ULV machines, used for insect control spraying and for mosquito control around worker accommodation.
This type of machine differs from a thermal fogger, because it creates droplets with high-velocity air from a blower rather than with heat. Engine power reaches the blower through a clutch and pulley assembly.
The symptom the group experienced was good performance at first, then power falling away gradually after about forty minutes, which was roughly half a field. That forced a break and a restart every single time.
A fault that does not show up while parked
When the group took the machine to a shop in town, the technician started it, revved it, listened, and pronounced it fine, because parked and running briefly the fault does not appear at all.
That is the key characteristic of drive-train damage. It shows itself only when the system is hot and under continuous load. A ten-minute test in a workshop will never find it.
Some members concluded it must be the fuel or the chemical, so they tried a different fuel brand and adjusted the solution concentration, which improved nothing and cost another two weeks.
The turning point came when a member noticed that if he stopped the machine and waited fifteen minutes to cool, it briefly regained full power. That clue points directly at heat and drive-train slip.
What happens inside a clutch as it wears
The centrifugal clutch in a ULV machine works by throwing the friction shoes outward to grip the clutch drum once engine speed is high enough, transmitting power to the blower.
As the friction material wears thinner, the clamping force it applies to the drum falls, and as the system heats up the friction coefficient falls further. The clutch starts slipping under a load it used to carry.
Slipping generates more heat, which causes more slipping, in a closed loop. That is why the fault appears after a period of work rather than from the start.
With the cover removed we found a thick layer of black friction dust in the clutch housing, and the drum surface carried pale blue heat rings, clear evidence of sustained slipping.
The pulley and belt degrading alongside
On this model, power passes from the clutch to the blower through a pulley and belt, another wear point that is frequently overlooked because it sits under a cover.
A worn pulley groove becomes wider and deeper, so the belt sits lower in the groove than designed, which changes the effective ratio and reduces the friction available to transmit power.
A belt running in a worn groove wears far faster than normal, and as it heats it stretches, adding its own slip on top of the clutch slip.
On this machine the belt showed glazing on its side faces, a clear sign of slipping, and measured longer than a new belt of the same specification.
The end result is the wrong droplet size
A ULV machine forms droplets with air velocity. When blower speed falls, the air velocity at the nozzle falls with it, and droplet size increases immediately.
Oversized droplets fall to the ground quickly rather than drifting where they are needed, so control effectiveness drops sharply even though the same volume of product is being used.
What makes this expensive for a farmer group is that the second half of every field was treated with the wrong droplet size, meaning half of every job was underperforming.
And because results are hard to measure in the short term, the problem continued for months before anyone connected it to the machine.
The damage, part by part
Clutch slipping once the system is hot
Worn friction material applies less clamping force, and heat reduces the friction coefficient further, producing slip that generates more heat and more slip in a closed loop.
Worn pulley grooves letting the belt sink and slip
A wider, deeper groove lets the belt sit lower than designed, changing the effective ratio and reducing the friction available to transmit power.
Belts stretching and wearing abnormally fast
A belt running in a worn groove wears far faster than normal and stretches as it heats, adding its own slip on top of the clutch slip.
Larger droplets as blower speed falls
A ULV machine forms droplets with air velocity. When speed falls, droplets grow and fall quickly, sharply reducing effectiveness for the same product volume.
Why the usual fixes do not work
A ten-minute parked test
Drive-train faults appear only under sustained load and heat. A short workshop test finds nothing and leaves the customer believing the machine is fine.
Changing fuel or chemical brand
When results disappoint, fuel and chemical get blamed first. Here neither was at fault, so the change cost money and time for nothing.
Raising engine speed above specification to compensate
Over-revving makes the clutch slip harder and heat faster, while accelerating engine wear as well.
Replacing only the belt
A new belt in a worn pulley groove wears out just as fast within a few weeks. The groove must always be measured first.
Taking frequent cooling breaks and carrying on
Cooling does restore performance temporarily, but every slip adds wear, so the problem worsens steadily and lost working time accumulates.
You only find it by testing under real load
Drive-train damage does not reveal itself in short tests, so we run the machine under continuous load to true operating temperature and then measure blower speed against the expected figure.
When slip is confirmed, we remove the clutch and pulley assembly and measure the real numbers: friction material thickness, drum roundness and surface condition, pulley groove width and depth, and belt length.
Then we replace only the components actually outside tolerance, and show the customer the numbers, so they can be confident they are not paying for parts that were still serviceable.
10 reasons customers choose World Health Disinfection
1. Tested under real load to operating temperature
We do not judge from a short run. We test continuously until the system reaches genuine working temperature, because drive-train faults only appear then.
2. Blower speed measured against specification
We measure actual blower speed rather than judging by sound or the feel of the airflow. That number immediately shows whether the system is slipping.
3. Friction thickness and drum condition measured
We measure remaining thickness against the minimum limit and inspect the drum for heat marks and distortion before deciding what needs replacing.
4. Pulley grooves always measured before fitting a belt
A new belt in a worn groove wears out just as fast, so we measure groove width and depth every time before deciding.
5. Only out-of-tolerance parts replaced
We show the customer the measurements first, so they can be confident nothing serviceable is being replaced unnecessarily.
6. Clutch housing cleaned of friction dust
Accumulated dust reduces heat dissipation and accelerates slipping, so we clean it out whenever the cover comes off.
7. Blower bearings and impeller balance checked
Sustained slipping usually accompanies abnormal loading, so we check bearings and impeller to make sure no hidden fault follows.
8. Droplet size tested after repair
We test-spray with the customer's product and confirm droplet size is back within the model's range, not simply that the airflow feels stronger.
9. Handover with hours-based replacement intervals
Drive-train components are consumables with a life measured in operating hours. We supply intervals so the group can budget ahead.
10. Nationwide pickup and return
We collect from and return to farmer groups, farms, factories, municipalities and hotels across Thailand.
Before and after
Before
- Power falling away after about forty minutes every time
- Blower speed below specification once the system was hot
- Clutch friction material worn below the minimum limit
- Clutch drum showing pale blue heat rings
- Pulley grooves worn wide and deep, belt sitting low in the groove
- Droplet size above the acceptable range in the second half of every job
After
- Power steady through a full continuous working session
- Blower speed within specification both cold and hot
- New correct-model clutch assembly and drum fitted
- New pulley and belt fitted together
- Clutch housing cleaned and blower bearings checked
- Droplet size back within range throughout the whole job
Our three-step process
1. Load testing and quotation against real damage
We collect the machine, run it under continuous load to operating temperature, measure blower speed, then strip and measure the drive train before quoting with numbers and photographs.
2. Replace only out-of-tolerance parts to specification
Clutch, drum, pulley and belt replaced according to the measurements, with the clutch housing cleaned and blower bearings checked.
3. Droplet size testing and handover with replacement intervals
Test-sprayed with the customer's product for a full working cycle, droplet size verified, then returned with hours-based replacement intervals.
The shop in town said the machine was fine because they only tried it for ten minutes. We wasted nearly two months changing fuel and chemicals. Here they ran it until it was hot and showed me the speed reading. Once I saw the numbers it was obvious. We now finish a whole field in one go.
Khun Boonlert - Chairman, large-plot farmer group, Suphan Buri
How to spot drive-train slip yourself
Notice whether power falls away after a period of work. If the machine is strong for the first twenty minutes then gradually weakens, that pattern points to heat and slip, not to a fuel problem.
Stop the machine and wait fifteen minutes to cool. If it briefly returns to full power, the fault is clearly heat-related.
Smell around the clutch cover after use. A burnt smell like brake material is one of the clearest indications of slipping there is.
Listen under acceleration. If engine speed rises but the air noise from the nozzle does not rise with it, power is not reaching the blower fully.
Extending drive-train life on a ULV machine
Do not hold high engine speed before you actually begin spraying, because the clutch engages and slips unnecessarily. Bring the revs up only when you are ready to work.
Avoid frequent throttle changes during a pass. Repeated engagement and release is a leading cause of accelerated clutch wear.
Open the cover and clean out friction dust at the manufacturer's interval. Accumulated dust reduces heat dissipation and significantly accelerates slipping.
Check belt tension and pulley groove condition whenever the cover is off. Catching early groove wear means it can be replaced before it destroys the next belt as well.
Frequently asked questions
Why is the machine strong at first and weak later?
A fault that tracks with time and heat usually comes from a slipping drive train rather than a fuel problem. It is only found by testing under continuous load.
Why can a general workshop not find it?
Because a short parked test never brings the system to the temperature at which slipping begins, so the symptom never appears.
Is replacing just the belt enough?
The pulley groove must be measured first. If it is worn beyond limits, a new belt will wear out just as fast within a few weeks.
How does clutch slip change droplet size?
A ULV machine forms droplets with air velocity. When slip reduces blower speed, air velocity falls, so droplets grow and fall to the ground quickly.
How long does the repair take?
Drive-train replacement typically takes two to four working days, depending on availability of the clutch, pulley and belt for that model.
Should the drive train be replaced on schedule or on failure?
On the manufacturer's operating-hours schedule, because by the time slipping is noticeable, half of your recent work has already been underperforming.
Do you serve farmer groups and farms?
Yes. We serve large-plot farmer groups, farms, plantations, factories and local authorities nationwide, with pickup and return.
Do you repair thermal fogging machines too?

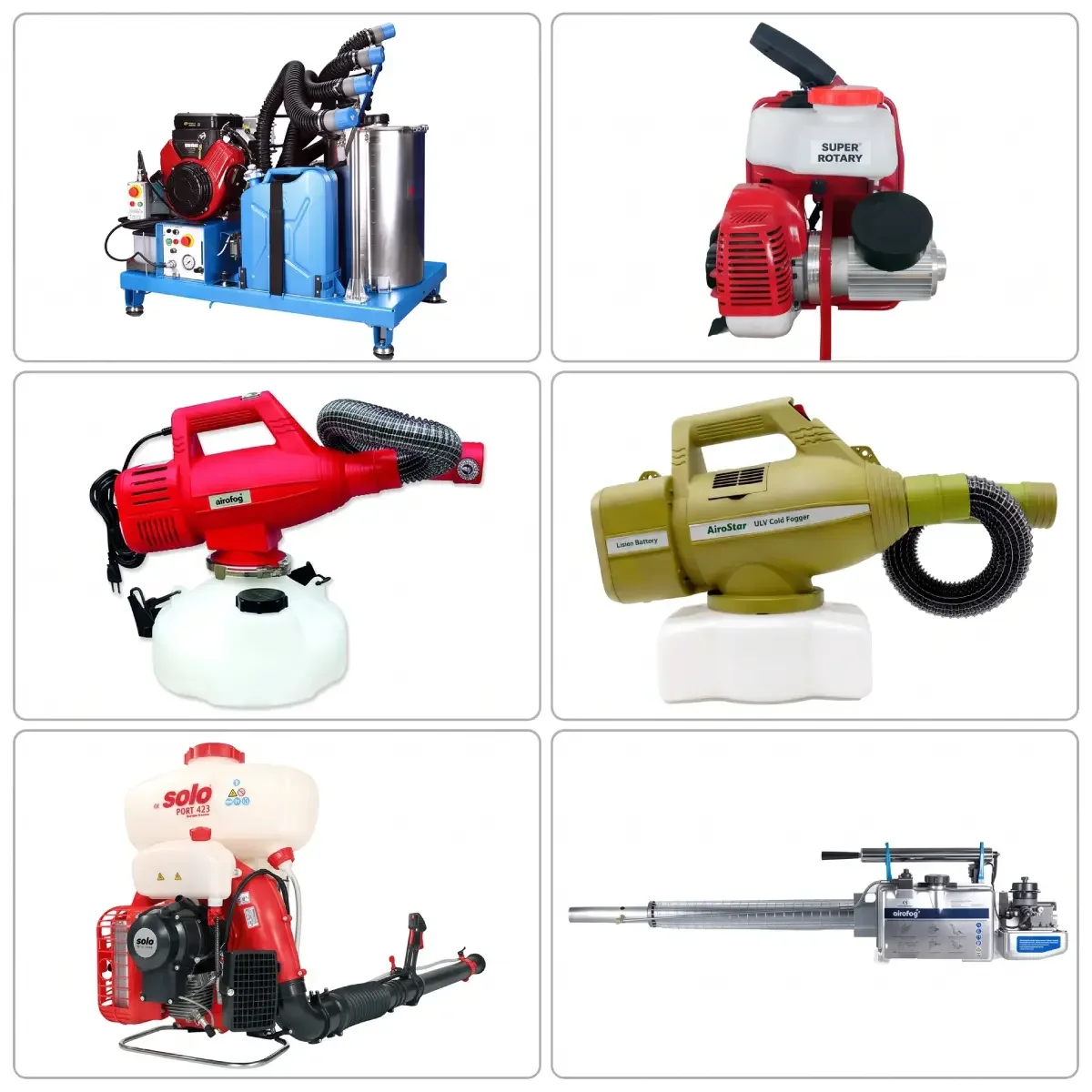

Yes. We repair and maintain both thermal fogging machines and all types of ULV equipment, including electrical and control-board work.
If power drops mid-job, do not blame the fuel first
Power loss that tracks with time and heat is a pattern that points clearly at the drive train, and it is a fault that short test runs cannot detect.
